PHP生成MySQL数据字典数据表结构

由码匠 · 发布日期 2015年01月21日 · 已更新 2020年10月26日

php文件源码：

<?php
/**
 * 生成mysql数据字典
 */
// 配置数据库
$database = array();
$database['DB_HOST'] = '127.0.0.1';
$database['DB_NAME'] = 'test';
$database['DB_USER'] = 'testuser';
$database['DB_PWD'] = '123456';

if(!function_exists('mysql_connect')){

    $dbhost = $database['DB_HOST'];
    $dbport = 3306;
    $dbuser = $database['DB_USER'];
    $dbpass = $database['DB_PWD'];
    $dbname = $database['DB_NAME'];


    function mysql_connect($dbhost, $dbuser, $dbpass){
        global $dbport;
        global $dbname;
        global $mysqli;
        $mysqli = mysqli_connect("$dbhost:$dbport", $dbuser, $dbpass, $dbname);
        return $mysqli;
        }
    function mysql_select_db($dbname){
        global $mysqli;
        return mysqli_select_db($mysqli,$dbname);
        }
    function mysql_fetch_array($result){
        return mysqli_fetch_array($result);
        }
    function mysql_fetch_assoc($result){
        return mysqli_fetch_assoc($result);
        }
    function mysql_fetch_row($result){
        return mysqli_fetch_row($result);
        }
    function mysql_query($query){
        global $mysqli;
        return mysqli_query($mysqli,$query);
        }
    function mysql_escape_string($data){
        global $mysqli;
        return mysqli_real_escape_string($mysqli, $data);
        }
    function mysql_real_escape_string($data){
        return mysql_real_escape_string($data);
        }
    function mysql_close(){
        global $mysqli;
        return mysqli_close($mysqli);
        }
}

$mysql_conn = @mysql_connect("{$database['DB_HOST']}", "{$database['DB_USER']}", "{$database['DB_PWD']}") or die("Mysql connect is error.");
mysql_select_db($database['DB_NAME'], $mysql_conn);
$result = mysql_query('show tables', $mysql_conn);
mysql_query('SET NAME GBK', $mysql_conn);
// 取得所有表名
while ($row = mysql_fetch_array($result))
{
	$tables[]['TABLE_NAME'] = $row[0];
}
// 循环取得所有表的备注及表中列消息
foreach($tables as $k => $v)
{
	$sql = 'SELECT * FROM ';
	$sql .= 'INFORMATION_SCHEMA.TABLES ';
	$sql .= 'WHERE ';
	$sql .= "table_name = '{$v['TABLE_NAME']}' AND table_schema = '{$database['DB_NAME']}'";
	$table_result = mysql_query($sql, $mysql_conn);
	while ($t = mysql_fetch_array($table_result))
	{
		$tables[$k]['TABLE_COMMENT'] = $t['TABLE_COMMENT'];
	}
	$sql = 'SELECT * FROM ';
	$sql .= 'INFORMATION_SCHEMA.COLUMNS ';
	$sql .= 'WHERE ';
	$sql .= "table_name = '{$v['TABLE_NAME']}' AND table_schema = '{$database['DB_NAME']}'";

	$fields = array();
	$field_result = mysql_query($sql, $mysql_conn);
	while ($t = mysql_fetch_array($field_result))
	{
		$fields[] = $t;
	}
	$tables[$k]['COLUMN'] = $fields;
}
mysql_close($mysql_conn);

$html = '';
// 循环所有表
foreach($tables as $k => $v)
{
	$html .= '<table border="1" cellspacing="0" cellpadding="0" align="center">';
	$html .= '<caption>表名：' . $v['TABLE_NAME'] . ' ' . $v['TABLE_COMMENT'] . '</caption>';
	$html .= '<tbody><tr><th>字段名</th><th>数据类型</th><th>默认值</th><th>允许非空</th><th>自动递增</th><th>备注</th></tr>';
	$html .= '';

	foreach($v['COLUMN'] AS $f)
	{
		$html .= '<td class="c1">' . $f['COLUMN_NAME'] . '</td>';
		$html .= '<td class="c2">' . $f['COLUMN_TYPE'] . '</td>';
		$html .= '<td class="c3">' . $f['COLUMN_DEFAULT'] . '</td>';
		$html .= '<td class="c4">' . $f['IS_NULLABLE'] . '</td>';
		$html .= '<td class="c5">' . ($f['EXTRA'] == 'auto_increment'?'是':' ') . '</td>';
		$html .= '<td class="c6">' . $f['COLUMN_COMMENT'] . '</td>';
		$html .= '</tr>';
	}
	$html .= '</tbody></table></p>';
}
// 输出
echo '<html>
    <meta charset="utf-8">
    <title>自动生成数据字典</title>
    <style>
        body,td,th {font-family:"宋体"; font-size:12px;}
		table,h1,p{width:960px;margin:0px auto;}
        table{border-collapse:collapse;border:1px solid #CCC;background:#efefef;}
        table caption{text-align:left; background-color:#fff; line-height:2em; font-size:14px; font-weight:bold; }
        table th{text-align:left; font-weight:bold;height:26px; line-height:26px; font-size:12px; border:1px solid #CCC;padding-left:5px;}
        table td{height:20px; font-size:12px; border:1px solid #CCC;background-color:#fff;padding-left:5px;}
        .c1{ width: 150px;}
        .c2{ width: 150px;}
        .c3{ width: 80px;}
        .c4{ width: 100px;}
        .c5{ width: 100px;}
        .c6{ width: 300px;}
    </style>
    <body>';
echo '<h1 style="text-align:center;">数据字典</h1>';
echo '<p style="text-align:center;margin:20px auto;">生成时间：' . date('Y-m-d H:i:s') . '</p>';
echo $html;
echo '<p style="text-align:left;margin:20px auto;">总共：' . count($tables) . '个数据表</p>';
echo '</body></html>';

?>

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

<?php

/**

* 生成mysql数据字典

// 配置数据库

$database = array();

$database['DB_HOST'] = '127.0.0.1';

$database['DB_NAME'] = 'test';

$database['DB_USER'] = 'testuser';

$database['DB_PWD'] = '123456';

if(!function_exists('mysql_connect')){

$dbhost = $database['DB_HOST'];

$dbport = 3306;

$dbuser = $database['DB_USER'];

$dbpass = $database['DB_PWD'];

$dbname = $database['DB_NAME'];

function mysql_connect($dbhost, $dbuser, $dbpass){

global $dbport;

global $dbname;

global $mysqli;

$mysqli = mysqli_connect("$dbhost:$dbport", $dbuser, $dbpass, $dbname);

return $mysqli;

}

function mysql_select_db($dbname){

global $mysqli;

return mysqli_select_db($mysqli,$dbname);

}

function mysql_fetch_array($result){

return mysqli_fetch_array($result);

}

function mysql_fetch_assoc($result){

return mysqli_fetch_assoc($result);

}

function mysql_fetch_row($result){

return mysqli_fetch_row($result);

}

function mysql_query($query){

global $mysqli;

return mysqli_query($mysqli,$query);

}

function mysql_escape_string($data){

global $mysqli;

return mysqli_real_escape_string($mysqli, $data);

}

function mysql_real_escape_string($data){

return mysql_real_escape_string($data);

}

function mysql_close(){

global $mysqli;

return mysqli_close($mysqli);

}

$mysql_conn = @mysql_connect("{$database['DB_HOST']}", "{$database['DB_USER']}", "{$database['DB_PWD']}") or die("Mysql connect is error.");

mysql_select_db($database['DB_NAME'], $mysql_conn);

$result = mysql_query('show tables', $mysql_conn);

mysql_query('SET NAME GBK', $mysql_conn);

// 取得所有表名

while ($row = mysql_fetch_array($result))

{

$tables[]['TABLE_NAME'] = $row[0];

}

// 循环取得所有表的备注及表中列消息

foreach($tables as $k => $v)

{

$sql = 'SELECT * FROM ';

$sql .= 'INFORMATION_SCHEMA.TABLES ';

$sql .= 'WHERE ';

$sql .= "table_name = '{$v['TABLE_NAME']}' AND table_schema = '{$database['DB_NAME']}'";

$table_result = mysql_query($sql, $mysql_conn);

while ($t = mysql_fetch_array($table_result))

{

$tables[$k]['TABLE_COMMENT'] = $t['TABLE_COMMENT'];

}

$sql = 'SELECT * FROM ';

$sql .= 'INFORMATION_SCHEMA.COLUMNS ';

$sql .= 'WHERE ';

$sql .= "table_name = '{$v['TABLE_NAME']}' AND table_schema = '{$database['DB_NAME']}'";

$fields = array();

$field_result = mysql_query($sql, $mysql_conn);

while ($t = mysql_fetch_array($field_result))

{

$fields[] = $t;

}

$tables[$k]['COLUMN'] = $fields;

}

mysql_close($mysql_conn);

$html = '';

// 循环所有表

foreach($tables as $k => $v)

{

$html .= '<table border="1" cellspacing="0" cellpadding="0" align="center">';

$html .= '<caption>表名：' . $v['TABLE_NAME'] . ' ' . $v['TABLE_COMMENT'] . '</caption>';

$html .= '<tbody><tr><th>字段名</th><th>数据类型</th><th>默认值</th><th>允许非空</th><th>自动递增</th><th>备注</th></tr>';

$html .= '';

foreach($v['COLUMN'] AS $f)

{

$html .= '<td class="c1">' . $f['COLUMN_NAME'] . '</td>';

$html .= '<td class="c2">' . $f['COLUMN_TYPE'] . '</td>';

$html .= '<td class="c3">' . $f['COLUMN_DEFAULT'] . '</td>';

$html .= '<td class="c4">' . $f['IS_NULLABLE'] . '</td>';

$html .= '<td class="c5">' . ($f['EXTRA'] == 'auto_increment'?'是':' ') . '</td>';

$html .= '<td class="c6">' . $f['COLUMN_COMMENT'] . '</td>';

$html .= '</tr>';

}

$html .= '</tbody></table></p>';

}

// 输出

echo '<html>

<title>自动生成数据字典</title>

<style>

body,td,th {font-family:"宋体"; font-size:12px;}

table,h1,p{width:960px;margin:0px auto;}

table{border-collapse:collapse;border:1px solid #CCC;background:#efefef;}

table caption{text-align:left; background-color:#fff; line-height:2em; font-size:14px; font-weight:bold; }

table th{text-align:left; font-weight:bold;height:26px; line-height:26px; font-size:12px; border:1px solid #CCC;padding-left:5px;}

table td{height:20px; font-size:12px; border:1px solid #CCC;background-color:#fff;padding-left:5px;}

.c1{ width: 150px;}

.c2{ width: 150px;}

.c3{ width: 80px;}

.c4{ width: 100px;}

.c5{ width: 100px;}

.c6{ width: 300px;}

</style>

<body>';

echo '<h1 style="text-align:center;">数据字典</h1>';

echo '<p style="text-align:center;margin:20px auto;">生成时间：' . date('Y-m-d H:i:s') . '</p>';

echo $html;

echo '<p style="text-align:left;margin:20px auto;">总共：' . count($tables) . '个数据表</p>';

echo '</body></html>';

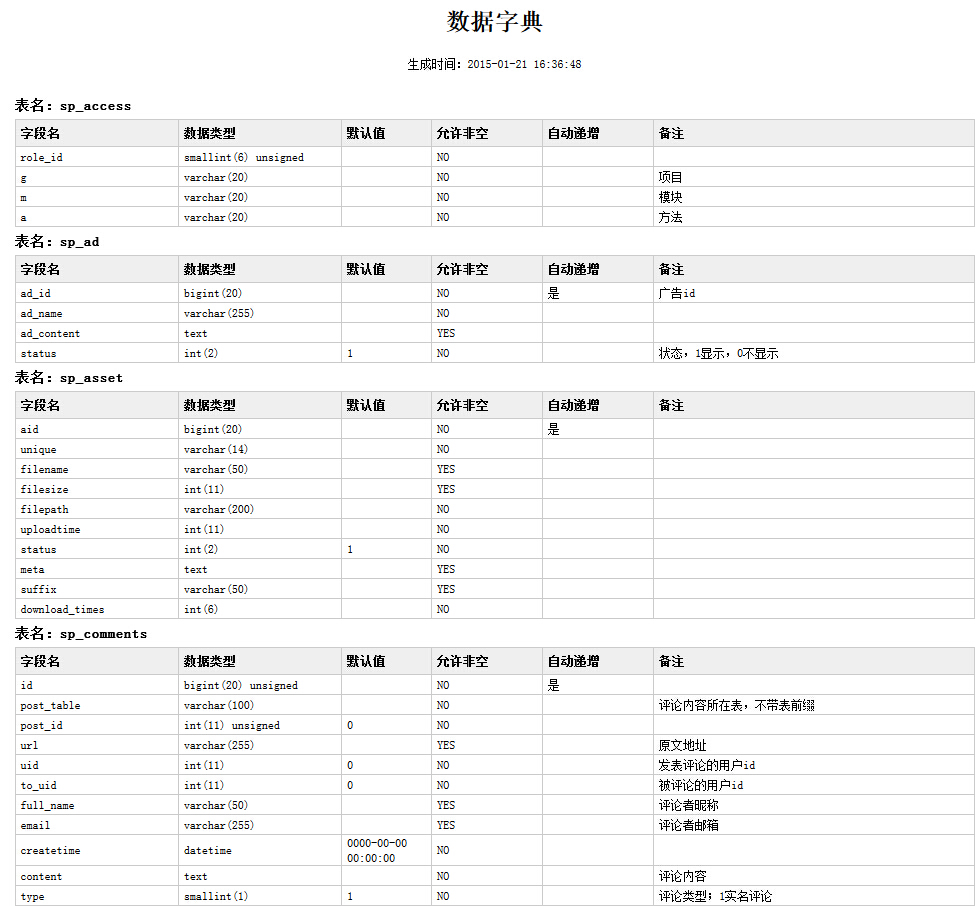

生成效果图：

PHP生成MySQL数据字典数据表结构
